3D-DOCTOR
DICOM
Conformance Statement
5 Appletree Lane
Lexington, MA 02420
USA
© Copyright Able Software Corp. 1998-2008 All Rights Reserved.
1. Introduction
3D-DOCTOR is a computer software used for processing and displaying medical images stored in DICOM, TIFF, JPEG, BMP, raw and other formats. The application conforms to the DICOM 3.0 standard to allow interoperability with other DICOM compliant systems through standard image file formats.
The implementation of 3D-DOCTOR's DICOM interface has been carefully tested to assure correspondence with this Conformance Statement. But the Conformance Statement and the DICOM standard do not guarantee interoperability of 3D-DOCTOR and products of other vendors.
The user must compare the relevant Conformance Statements and if a successful interconnection should be possible, the user is responsible to specify an appropriate test suite and to validate the interoperability which is required.
This document and the associated software are copyrighted by Able Software Corp. of Lexington, MA, USA. Neither this document nor the associated software may be reproduced or copied without the expressed written consent of Able Software Corp.
This publication may include technical inaccuracies and/or typographical errors. Changes are periodically made to the information herein and incorporated into new editions of the publication.
Able Software may make improvements and/or changes to the products and/or the programs described in this publication at any time. Product names mentioned in this manual may be registered of their respective companies and are hereby acknowledged.
2. Definitions and Abbreviations
This document makes use of the following definitions and abbreviation. More detailed descriptions of these terms can be found in "Digital Imaging and Communications in Medicine (DICOM) 3.0 - 1999", National Electrical Manufacturers Association (NEMA) PS 3.1-14.
AE: DICOM Application Entity
DICOM: Digital Imaging and Communications in Medicine
IOD: DICOM Information Object Definition
PDU: DICOM Protocol Data Unit
SCU: DICOM Service Class User
SCP: DICOM Service Class Provider
SOP: DICOM Service-Object Pair

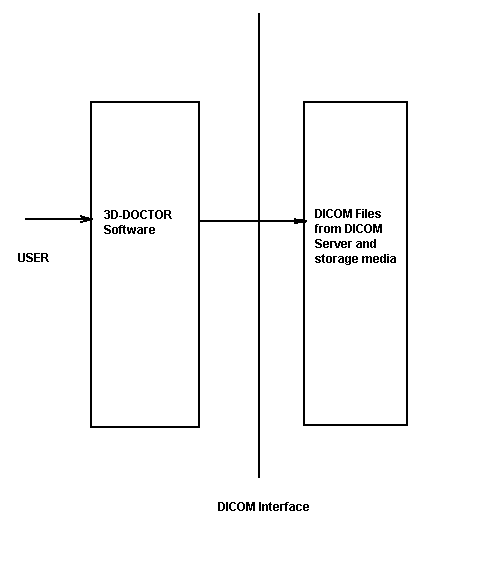

3. Implementation Overview
3D-DOCTOR software is used for viewing, processing and analyzing medical images. The application conforms to the DICOM 3.0 standard to allow interoperability with other DICOM 3.0 compliant systems through image files in the DICOM format.
3D-DOCTOR does not have functions to retrieve/store images from/to a DICOM server directly using a network. Images are transferred by computer files through a network or storage media, such as CD-R or zip disk.
4. Storage Provider AE
Not applicable.
5. Query/Retrieve User AE
Not applicable.
6. Media Storage AE
The Media Storage AE provides standard conformance to the General Purpose CD-R Image Interchange Profile (STD-GEN-CD) (supporting CR, CT, MR and SC images only) and CT and MR Image Application Profile (STD-CTMR).
In order to read the images contained on a CD-R correctly, the following mandatory DICOM image attributes (DICOM Part 10) are required:
|
Mandatory Keys:
DICOM Part 10 File Import |
||
|
IOD |
Field |
Tag |
|
Patient |
Patient Name |
(0010,0010) |
|
Patient |
Patient ID |
(0010,0020) |
|
Study |
Study ID |
(0020,0010) |
|
Study |
Study UID |
(0020,000D) |
|
Series |
Modality |
(0008,0060) |
|
Series |
Series Number |
(0020,0011) |
|
Image |
Referenced SOP Class UID in File |
(0004,1510) |
|
Image |
Referenced SOP Instance UID in
File |
(0004,1511) |
|
Image |
Referenced Transfer Syntax UID
in File |
(0004,1512) |
|
Image |
Referenced File ID |
(0004,1500) |
|
Image |
Image Number |
(0020,0013) |
3D-DOCTYOR can import and read images from the following SOP classes:
|
Supported
SOP Classes: DICOM
Part 10 Import |
|
|
Name |
UID |
|
CR Image Storage |
1.2.840.10008.5.1.4.1.1.1 |
|
CT Image Storage |
1.2.840.10008.5.1.4.1.1.2 |
|
DX Image Storage (Presentation) |
1.2.840.10008.5.1.4.1.1.1.1 |
|
DX Image Storage (Raw) |
1.2.840.10008.5.1.4.1.1.1.1.1 |
|
MR Image Storage |
1.2.840.10008.5.1.4.1.1.4 |
|
US Image Storage (retired) |
1.2.840.10008.5.1.4.1.1.6 |
|
US Image Storage |
1.2.840.10008.5.1.4.1.1.6.1 |
|
SC Image Storage |
1.2.840.10008.5.1.4.1.1.7 |
|
MG Storage (Presentation) |
1.2.840.10008.5.1.4.1.1.1.2 |
|
MG Storage (Raw) |
1.2.840.10008.5.1.4.1.1.1.2.1 |
|
NM Image Storage (Retired) |
1.2.840.10008.5.1.4.1.1.5 |
|
NM Image Storage |
1.2.840.10008.5.1.4.1.1.20 |
The following transfer syntaxes are supported by 3D-DOCTOR when importing and reading CD-R images:
|
Supported
Transfer Syntaxes: DICOM
Part 10 Import |
|
|
Name |
UID |
|
Implicit VR, Little Endian |
1.2.840.10008.1.2 |
